Integration & API Guides

[Middleware]-Standardized Error Handling for API Responses

This page documents the implementation of a centralized error handler that returns consistent application/problem+json responses for schema validation failures (400) and internal server errors (500) in the AutoExtract Platform.

Implementation is available in branch
js_errorHandlerMiddleware_590761

Related user story: #590761

Summary

Fastify’s built-in validator throws AJV-based errors when incoming requests fail schema validation. By default, these errors do not conform to CLA’s problem+json format. This implementation introduces a global error handler to:

  • Intercept validation errors for request body, query, and params
  • Return a structured 400 response in the application/problem+json format
  • Include a canonical type, title, status, detail, validationErrors, and instance
  • Return consistent 500 responses for internal server exceptions

The handler is scoped to schema-validated routes using POST, PUT, or PATCH and is safe to apply across the platform.

Key Behavior

400 - Invalid JSON Body

Triggered when a request fails schema validation.

Response includes:

  • type: https://claconnect.com/platform/autoextract/problems/invalid-json-body
  • title: Invalid JSON body
  • status: 400
  • detail: the validation message
  • validationErrors: raw AJV error array
  • instance: /platform/autoextract/<fileId> if available, otherwise /platform/autoextract

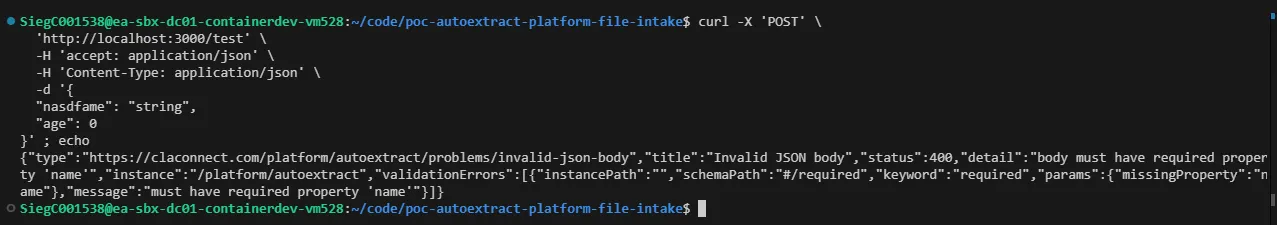

Example curl:

curl -X 'POST' http://localhost:3000/test \
  -H 'Content-Type: application/json' \
  -d '{ "nasdfame": "string", "age": 0 }'; echo

Example response:

{
  "type": "https://claconnect.com/platform/autoextract/problems/invalid-json-body",
  "title": "Invalid JSON body",
  "status": 400,
  "detail": "body must have required property 'name'",
  "instance": "/platform/autoextract",
  "validationErrors": [...]
}

500 - Internal Server Error

Returned when a controller throws an unhandled error.

Response includes:

  • type: https://claconnect.com/platform/autoextract/problems/internal-server-error
  • title: Internal Server Error
  • status: 500
  • detail: error message
  • instance: derived from fileId in request body or params

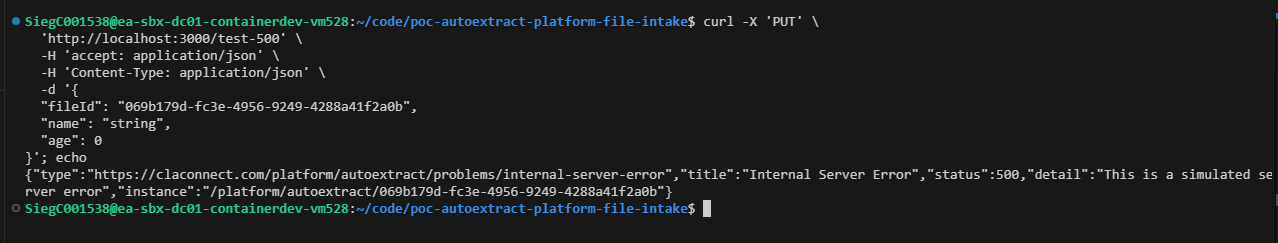

Example curl:

curl -X 'PUT' http://localhost:3000/test-500 \
  -H 'Content-Type: application/json' \
  -d '{ "fileId": "abc123", "name": "string", "age": 0 }'; echo

Example response:

{
  "type": "https://claconnect.com/platform/autoextract/problems/internal-server-error",
  "title": "Internal Server Error",
  "status": 500,
  "detail": "This is a simulated internal server error",
  "instance": "/platform/autoextract/abc123"
}

Code Additions

1. src/middleware/errorHandler.ts

Centralized error handler registered with Fastify. Detects schema validation failures (AJV) and runtime exceptions and transforms them into problem+json responses.

import { FastifyError, FastifyReply, FastifyRequest } from 'fastify';
import { FastifyInstance } from 'fastify/types/instance';
function getInstanceUrl(request: FastifyRequest): string {
    const doesParamsHaveFileId =
        typeof request.params === 'object' && request.params && 'fileId' in request.params;
    const doesBodyHaveFileId =
        typeof request.body === 'object' && request.body && Object.prototype.hasOwnProperty.call(request.body, 'fileId');
    const fileId = doesParamsHaveFileId
        ? (request.params as { fileId?: string }).fileId
        : doesBodyHaveFileId
            ? (request.body as { fileId?: string }).fileId
            : undefined;
    return fileId
        ? `/platform/autoextract/${fileId}`
        : '/platform/autoextract';
}
export function registerGlobalErrorHandler(frameworkServer: FastifyInstance) {
    frameworkServer.setErrorHandler((error: FastifyError, request: FastifyRequest, reply: FastifyReply) => {
        const isValidationError = error.validation && error.statusCode === 400;
        const isInternalServerError = error.statusCode === 500 || error instanceof Error;
        const instance = getInstanceUrl(request);
        if (isValidationError) {
            return reply
                .status(400)
                .type('application/problem+json')
                .send({
                    type: 'https://claconnect.com/platform/autoextract/problems/invalid-json-body',
                    title: 'Invalid JSON body',
                    status: 400,
                    detail: error.message,
                    instance,
                    validationErrors: error.validation,
                });
        } else if (isInternalServerError) {
            return reply
                .status(500)
                .type('application/problem+json')
                .send({
                    type: 'https://claconnect.com/platform/autoextract/problems/internal-server-error',
                    title: 'Internal Server Error',
                    status: 500,
                    detail: error.message || 'An unexpected error occurred',
                    instance,
                });
        }
        reply.send(error);
    });
}

2. src/index.ts

Registers the error handler early in the server lifecycle.

import { registerGlobalErrorHandler } from './middleware/errorHandler.js';
registerGlobalErrorHandler(frameworkApp.server);

3. src/routes/index.ts

Adds two test routes for demonstrating 400 and 500 behavior.

import { FastifyInstance, FastifyReply, FastifyRequest } from 'fastify';
import { TestController } from '../controllers/testController.js';
import { testPostSchema, testPutSchema } from './schemas.js';
import type { TestPutBody } from '../types/middleware.js';
export const routes = async (frameworkServer: FastifyInstance) => {
    frameworkServer.route({
        method: 'POST',
        url: '/test',
        schema: testPostSchema,
        handler: async (request: FastifyRequest, reply: FastifyReply) => {
            const body = request.body as { name: string; age: number };
            const testController = new TestController();
            const result = await testController.handlePost(body);
            reply.send(result);
        },
    });
    frameworkServer.route({
        method: 'PUT',
        url: '/test-500',
        schema: testPutSchema,
        handler: async (request: FastifyRequest, reply: FastifyReply) => {
            const body = request.body as TestPutBody;
            const testController = new TestController();
            const result = await testController.handlePut(body);
            reply.send(result);
        },
    });
};

4. src/controllers/testController.ts

Controller with two methods: one for successful input, one that throws a 500.

export class TestController {
    async handlePost(body: { name: string; age: number }) {
        return {
            message: `Received name: ${body.name}, age: ${body.age}`,
        };
    }
    async handlePut(_: { fileId: string; name: string; age: number }) {
        throw new Error('This is a simulated internal server error');
    }
}

5. src/routes/schemas.ts

Schema definitions for the two test routes.

export const testPostSchema = {
    tags: ['test'],
    body: {
        type: 'object',
        required: ['name', 'age'],
        properties: {
            name: { type: 'string' },
            age: { type: 'number' },
        },
    },
    response: {
        200: {
            type: 'object',
            properties: {
                message: { type: 'string' },
            },
        },
    },
};
export const testPutSchema = {
    tags: ['test'],
    body: {
        type: 'object',
        required: ['fileId', 'name', 'age'],
        properties: {
            fileId: { type: 'string' },
            name: { type: 'string' },
            age: { type: 'number' },
        },
    },
    response: {
        200: {
            type: 'object',
            properties: {
                message: { type: 'string' },
            },
        },
    },
};

6. src/types/middleware.ts

Shared type for use in the PUT test route.

export type TestPutBody = {
    fileId: string;
    name: string;
    age: number;
};

Curl Examples

# Triggers 400 due to malformed "nasdfame" param.
curl -X 'POST' http://localhost:3000/test \
  -H 'Content-Type: application/json' \
  -d '{ "nasdfame": "string", "age": 0 }'; echo


# Triggers 500 due to hard-coded throw
curl -X 'PUT' http://localhost:3000/test-500 \
  -H 'Content-Type: application/json' \
  -d '{ "fileId": "abc123", "name": "string", "age": 0 }'; echo


  • This implementation is non-invasive and does not interfere with other status codes like 401 or 403
  • The instance property logic can be expanded later to include other request identifiers
  • All changes are encapsulated and ready for future adoption across more routes or services
